Compatible Applications

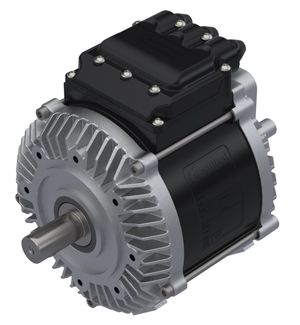

The design of our 193 Series IPM motors has been fully optimised for high volume production.
| Voltage | 24V – 96V |
|---|---|
| Peak torque | 50Nm – 70Nm |
| Peak power | 7kW – 26kW |
| Rated Power | 3kW – 6kW |
| Maximum speed | 7000 RPM |
| Motor weight | 11.4kg |
Compatible Applications

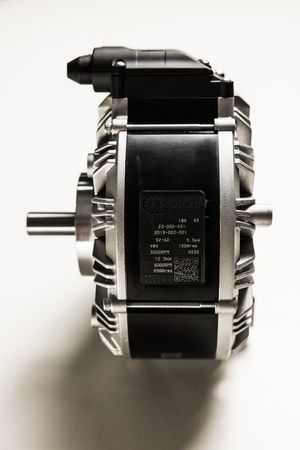

The design of our 193 Series IPM motors has been fully optimised for high volume production.
| Voltage | 24V – 96V |
|---|---|
| Peak torque | 105Nm – 140Nm |
| Peak power | 18kW – 44kW |
| Rated Power | 9kW – 12kW |
| Maximum speed | 7000 RPM |
| Motor weight | 18Kg |
Compatible Applications

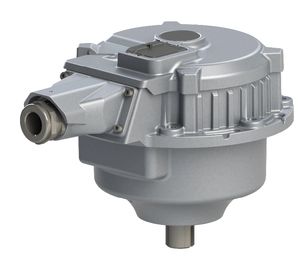

The 132 Series is a powerful solution for space constrained construction vehicles, and set to be market-leading in size per kilowatt for air-cooled electric motors.
| Voltage | 48V |
|---|---|
| Peak torque | 30Nm |
| Peak power | 7.8kW |
| Rated Power | 3.6kW |
| Maximum speed | 7000RPM |
| Motor weight | 7Kg |
Impact resistant cable with rugged strain relief
Light &
compact
Serviceable shaft and bearing with high load and shock capability
Optimised for repeatable scalable automated manufacturing

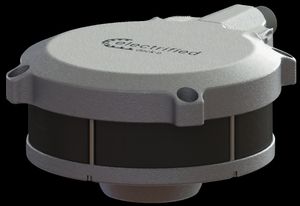

The adaption of our core technology in our Deck E-3 is brilliantly suited to lawncare and cleaning / maintenance applications.

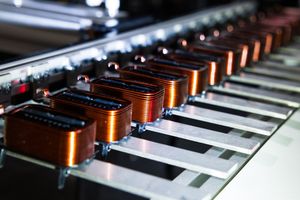

Using both copper and aluminium wire, we have a fully automated coil winding, assembly and jointing solution for our 193 Series motors.
More Information
To maximise thermal performance and the durability of our motors we have developed an over-moulding process that offers a range of performance benefits alongside extremely fast manufacturing times.
More Information

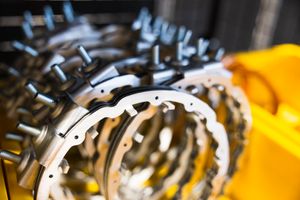

Supported by a number of patents, we have developed automated stator assembly that achieves high levels of repeatability whilst minimising excess material and wastage within the process.
More InformationElectrified Motors PMAC motors provide high torque density and exceptional efficiency. Our electric motors are ideal for two-wheel, three-wheel and off-highway applications where performance and responsiveness are critical.
Our electric motors are engineered for consistent output across long duty cycles. Optimised magnetic design and advanced cooling options ensure stable torque and speed, even during sustained high-load operation common in off-highway machinery and utility vehicles.
Yes. Electrified Motors designs its electric motors to withstand challenging environments, including high vibration, dust, water exposure and temperatures testing as part of the design and validation process. This means our PMAC solutions meet stringent durability and ingress protection standards, making them ideal for construction, agriculture and industrial equipment
Absolutely. We offer various torque outputs, voltage ranges and motor sizes. Electrified Motors works directly with OEM engineers to tailor electric motors and powertrains for motorcycles, scooters, three-wheel vehicles and off-highway equipment. We also work with a range of global partners to provide wider solutions pairing our motors with planetary gearboxes, transaxles and other components.
We use our patent protected high-efficiency cooling techniques to keep our PMAC motors operating within ideal temperature ranges. This ensures longevity, consistent performance and reduced maintenance demands for OEMs.
Electrified Motors PMAC motors are ideal for construction equipment, excavators, aerial lift platforms, lawncare, compact off-highway machinery, material handling equipment, municipal vehicles, street sweepers, marine propulsion, utility vehicles, golf cars, automated guided vehicles, autonomous vehicles, ground support equipment, AGVs, last mile delivery vehicles, two-wheel electric vehicles and three-wheel electric vehicles and other off-highway platforms requiring reliable and efficient electric propulsion.
More details can be found on the applications section here.
Our motors undergo extensive testing including vibration testing, thermal cycling, IP testing, EMI/EMC compliance and sustained load performance evaluation. High-quality materials and advanced motor control software ensures long operational life.
We provide CAD models, integration guides, controller support, torque-speed maps and application-specific tuning. Our engineering team collaborates with OEMs to ensure that PMAC motor systems integrate smoothly into new or existing vehicle architectures.
Yes. Electrified Motors powertrains are designed to meet global safety, performance and emissions standards. We support OEMs through regional certification processes across multiple vehicle classes, including two-wheel and three-wheel EV applications and off-highway machinery.
Yes. PMAC electric motors require minimal maintenance thanks to sealed designs, fewer moving parts, optimised cooling systems and intelligent motor control. This reduces downtime and lowers total cost of ownership for OEM customers.
